FMS Tire Pressure Monitoring System (FMS TPMS)

SENSORS PRODUCT CODE: FMS-40999500-000
GATEWAY (RECEIVER) PRODUCT CODE: FMS-40999500-001

TRANCEIVER (REPEATER) PRODUCT CODE: FMS-40999500-002

A tire pressure monitoring system (TPMS) is an electronic system designed to monitor the air pressure inside the pneumatic tires on various types of vehicles.

With the FMS sensor installed into each tire, fleet managers and drivers can immediately get the status of all tires of the vehicle with less effort. TPMS reports real-time tire pressure & tire temperature information to the driver, as well as the control room. The purpose of the tire pressure monitoring system (TPMS) in the vehicle is to warn, that at least one or more tires are significantly under-inflated or over-inflated, possibly creating unsafe driving conditions.

This innovation is beneficial in terms of reducing traffic accidents, improving fuel economy, and reducing tire wear due to improperly inflated tires by early recognition of a hazardous state of the tires. This is one of the most reliable solutions which can monitor and maintain the security of all tires of your fleet, to ensure the safety of your driver and your assets while on the road.

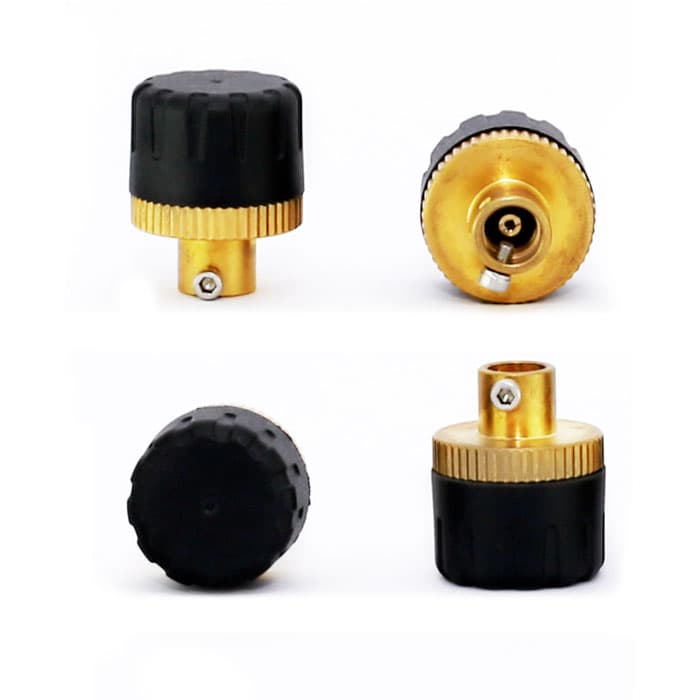

SENSOR FEATURES

  • Reliable cap sensors, easy to install
  • Water resistant
  • Replaceable sensor batteries
  • Fast leakage alert
  • Individually coded sensors
  • Anti-theft design

GATEWAY (RECEIVER)
FEATURES

  • Easy installation, reliable performance
  • UART(TTL) /RS232 connector to FMS to
    show pressure & temperature
  • High-and low-pressure warnings can be
    preset by users
  • High temperature warnings can be preset
    by users
  • High pressure, low pressure, high
    temperature and fast leakage alert
  • Long communicating distance
  • Multiple coding method

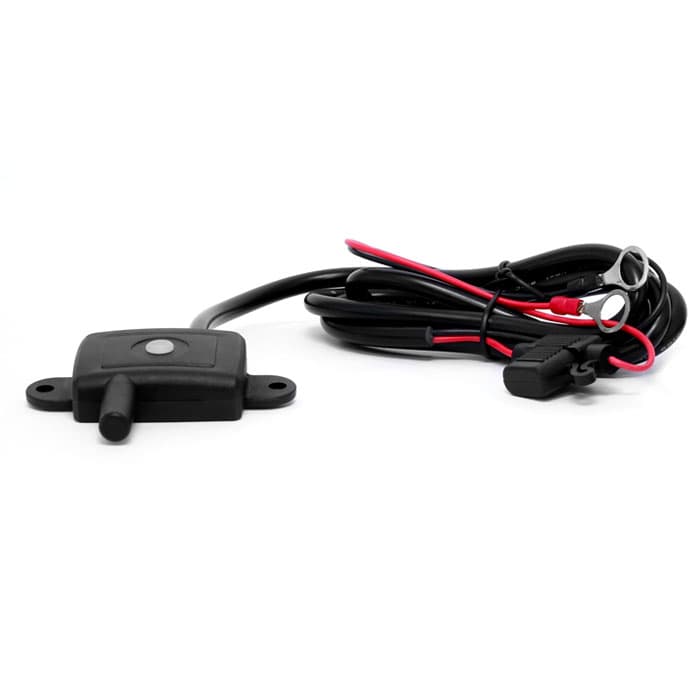

TRANCEIVER
(REPEATER)
FEATURES

  • Maintains signal stability
  • Records sensor ID, trailer ID and tire
    pressure and temperature limits.
  • Supports truck and trailer exchange
  • Transferable trailer sensor data
    between monitor and transceiver
  • Visible and audible alerts
  • Fixed alert for high temperature (90°C

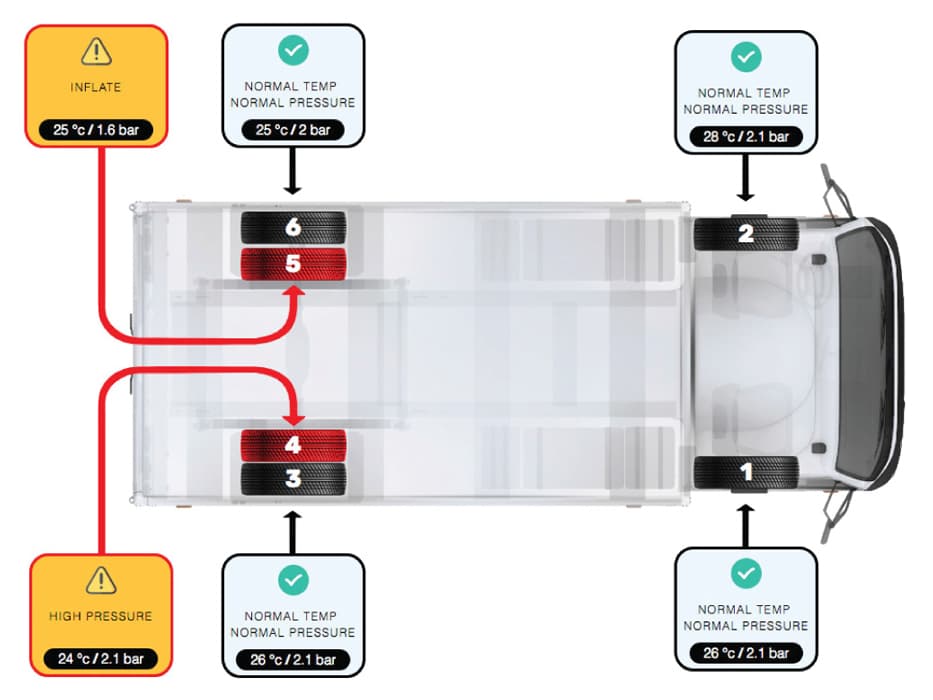

SENSOR FEATURES

Direct tire pressure monitoring systems (direct sensor TPMS) refers to the use of a pressure sensor directly mounted on the tires of a vehicle. The TPMS sensor is a small electronic assembly which is rugged enough to be mounted on the stem valve of the tire. The sensors are exposed to hostile environments, hence, they are robust in nature.

These sensors measure the tire pressure using a microelectromechanical system (MEMS) pressure sensor along with other information. It includes a serial number, temperature, acceleration, and the status of the complete tire pressure monitoring system with the information being subsequently transmitted wirelessly to the TPMS Gateway installed in the vehicle. The purpose of serial number is to ignore transmissions from other vehicles operating in near the field of the TPMS Gateways.

Applicable Industries

Oil & Gas
Security & Customs
Waste Management
Taxi & Limousine Services
Public Bus Transport
Municipality
Car Insurance
Transport & Distribution
Car Rental
Construction
School Bus

Download FMS TPMS Data Sheet to know its complete Technical Specifications, or contact us.
